Gauges and Senders

From 1970-1980 -- Trojan used AC-Delco gauges. Occasionally, some pre-1980 Trojan F-Boats like the F-30 (1979-1980) used Datcon gauges.

Problems tend to occur when the rules below are not followed. This is the often the mistake of a marine technician who is inexperienced or unaware of how AC-Delco gauges and senders work together. Typically, an owner notices a gauge problem and assumes it's an issue with the sender. The sender is then typically replaced with an off-brand / non-AC-Delco sender -- only to find that the AC-Delco gauge readings are incorrect, or the gauge is not working at all.

Here are some of the basics of AC-Delco gauges and senders:

1. You can identify a AC-Delco gauge by its tin backing. AC-Delco gauges do not have plastic backs.

2. There are two types of AC-Delco gauges - a single station gauge and a dual station gauge. AC-Delco gauges are also stamped as 'Single' or 'Dual' on the side (see photo)

3. Each type of AC-Delco gauge has a single sender. For example, AC-Delco fuel gauges must use a AC-Delco fuel sender. The same applies to engine temperature and oil pressure gauges. Note: A AC-Delco sender will power either a single or a dual gauge system.

4. Trojan used either white needle or orange needle AC-Delco gauges

5. You cannot use a NON AC-Delco gauge with a AC Delco gauge. For example, you cannot change the flybridge gauges to non-Delco without change the lower station gauges as well.

Important:
===>> You *can't* remove a flybridge and expect the lower station AC Delco gauges to work.
===>> You *can't* remove the lower station and expect the flybridge AC Delco gauges to work.
===>> AC Delco senders only work with AC Delco gauges.

At Beacon Marine we have some AC Delco single and dual gauges.

NOTE: Senders for engine temperature and oil pressure are no longer available. WE *DO* have oil pressure, water temperature and fuel gauges that are close match with the look of the Delco gauge. We also have senders for oil pressure, water temperature and fuel.

Questions call -- 609 713 4602

Above is the appearance of the replacement gauge.

AC-Delco Dual Station Oil Gauge -- 37.50

AC-Delco Dual Station Oil Gauge
Used on all F Boat through 1980 (except new models starting in 1979 which had Datcon gauges) ** This is a used Delco Dual station oil gauge. ** Only TWO available.

AC-Delco Fuel Gauge

Delco Oil Gauge
Used - Orange needle fuel gauge ** Only ONE available **

AC-Delco Fuel Gauge -- (Used) -- 75.00

Delco Fuel Gauge -- White Needle -- Used

AC-Delco Fuel Sender -- 120.80

AC-Delco Fuel Sender -- We need your boats hull number -OR- the model of your Trojan, the type of tank(s) used and their location -- so we can supply the correct sender for your Trojan. Each sender is set to factory specifications. This sender will only work with an AC Delco fuel gauge. AC Delco fuel gauges were used on Trojan boats 1970 - 1980. Any questions please call -- 609-713-4602

AC-Delco Gauge Mechanical Tach -- 80.00

Delco Gauge Mechanical Tach
Used on early Trojans 1960's

AC-Delco Gear Oil Sender -- 75.00

AC-Delco Gear Oil Sender

AC-Delco Oil Pressure Gauge -- 75.05

AC-Delco Single Station oil Pressure Gauges -- AC-Delco gauges were used in all F-boats

AC-Delco Oil Pressure Gauge -- 75.25

Oil Pressure Gauge - White needle
AC Delco Dual Station

AC-Delco Single Station Oil Gauge -- 75.12

AC-Delco Single Station Oil Pressure Gauge

Page: 2

AC-Delco Voltage Gauge -- 75.18

AC-Delco Voltage Gauge

Datcon Engine Hour Meter -- Old Stock -- 52.19

Datcon Engine Hour Meter -- Old Stock -- TESTED -- Only TWO Available

Datcon Fuel Gauge -- 76.61

Datcon Fuel Gauge
Same installation - remove / replace - Back lighting is red for night driving - (TRJDAT3799)

Datcon Fuel Gauge -- Used -- 58.73

Datcon Fuel Gauge -- Used, Tested and Verified -- Only FIVE available

Datcon Gauge Harness -- 29.71

Datcon Gauge / Plug Harness
All the Trojan Datcon gauges had a plug in harness. This makes for easy replacement of any Trojan Datcon gauge.

Datcon Gauge Light -- 12.57

Datcon Gauge Light

Datcon Oil Pressure - Used -- 42.72

Datcon Oil Pressure Gauge - "Old Style" - USED

Datcon Oil Pressure Gauge -- 78.31

Datcon Oil Pressure Gauge
Same connection -no adapter needed - Back lighting is red for night use - (TRJDAT3481)

Datcon Tachometer -- 175.00

Datcon Tachometer
Same installation as original - remove/replace - Back lite in red for night viewing (TRJDAT5261)

Datcon Tachometer - Used -- 100.00

"Old Style" Datcon Tachometer - USED ** Only THREE available **

Page: 3

Datcon Temperature Gauge -- 77.98

Datcon Temperature Gauge
Back lit red for night driving - Same installation - remove / replace - (TRJDAT8692)

Datcon Temperature Gauge - USED -- 44.73

Datcon Temperature Gauge - USED - "Old Style" - Only ONE Available

Datcon Voltage Gauge -- 77.61

Datcon Voltage Meter
Back lit red for night use - Same installation - remove / replace - (TRJDAT3801)

Datcon Voltage Gauge - "Old Style" -- 81.56

Datcon "Old Style" voltage gauge - NEW, Unused

Datcon Voltage Gauge - USED -- 41.01

Datcon Voltage Gauge - USED --"Old Style"

Engine Hour Meter -- 64.73

Engine Hour Meter
2.1" x 1.2"

Engine Hour Meter -- 59.57

Engine Hour Meter
Round hour meter -- Replaces Trojan round hour meter

Engine Hour Meter - NEW -- 71.10

Datcon Hour Meter - NEW --- Used on both F-boats and international -- Only FOUR Available

Fuel Gauge -- 57.83

Fuel Gauge
This fuel gauge is a close match to the Delco fuel gauge. If you have a bad Delco gauge and do not want replace it with a Delco gauge this is a good answer. You will also need to change the fuel sender to standard values. 35 full 240 empty. We have standard value fuel senders as well as Delco fuel senders.

Oil Pressure Gauge -- 57.24

Oil Pressure Gauge
This is a non-Delco gauge that is a close match to the original Delco gauges. If you have a bad oil pressure sender then this gauge is a good answer. The corresponding sender for this gauge is listed in this section. Chose a sender for single station or dual station.

Page: 4

Tach Generator -- 95.00

Tach Generator
This Tach Generator was used on many different diesels Trojan installed. If you need a replacement key call us. There were dozens of different keys used. We have many of the keys. We would need a picture and dimensions to ID your key. ** Only FOUR Available **

Tach Generator Key

Tach Generator Key
Since there a dozen different keys it is best to call us for availability.

Trojan Tach - Replacement (1970-80) -- 130.00

Tachometer for Trojan 1970-1980 -- NEW replacement for AC-Delco Gauges

Voltage Gauge -- 47.77

Voltage Gauge -- This is a non-Delco gauge that is a close match to the original Delco gauges. This is a good replacement gauge. We do have a few ordinal Delco volt Gauges

Voltage Gauge (Pre-1980) -- 86.10

Voltage Gauge (Pre-1980)

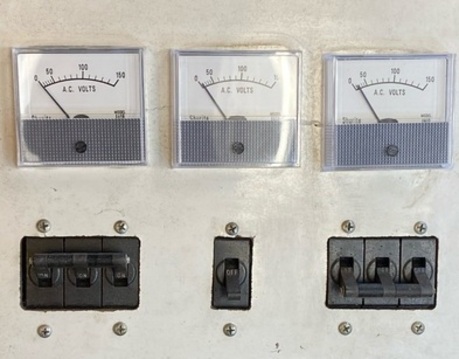

Direct replacement AC voltage gauge for Pre 1980 F-Boats. This voltage gauge is slightly different in appearance.

Voltage Gauge - (Used) -- 39.62

Voltage Gauge - USED
Requires 2" cut-out / Outside is 2 5/16" square by 1 7/32" deep / Used in pre-1981 Trojans

Water Temp Gauge -- 57.83

Water Temperature Gauge
This is a non-Delco gauge that is a close match to the original Delco gauge. If you have a bad Delco water temp gauge then this gauge is a good answer. The corresponding sender for this gauge is listed in this section. Chose a sender for single station or dual station. Note: AC-Delco and and other gauges are non- compatible. For example, you cannot have an AC-Delco temp gauge starboard side lower station and a non- AC-Delco gauge on the upper station starboard side. Question?? Call before ordering. 609-713-4602

Low Oil Pressure Switch -- 24.59

Oil Pressure Switch
For low oil pressure alarm -- alarm activates at 6PSI or below

Oil Pressure Sender -- 47.24

Oil Pressure Sender (0-80psi)
** Single station ** This sender will work with all Trojan Gauges except AC Delco.

Oil Pressure Sender (Dbl Station) -- 46.41

Oil Pressure Sender - (0-80psi)
** Dual Station ** Works with all Trojan oil pressure gauges except AC Delco

Page: 5

Single Station Water Temp Sender (1/2 NPT) -- 43.04

Water Temp Sender (Single Station) -- Each sender is tested before shipping. This sender is for a Datcon single station temperature gauge. Works with standard value gauges or a replacement AC Delco temp gauge. Will not work with an original AC Delco gauge. AC Delco temp senders are Not Available. You need to change the gauge to the one listed in the store. Gauge is 1/2 NPT for single station gauge.

Single Station Water Temp Sender (3/8 NPT) -- 34.73

Single Station Water Temp Sender (3/8 NPT) -- Each sender is tested before shipping. This sender is for a Datcon single station temp gauge F-Boats and International Boats. Works with standard values gauges, or the replacement AC Delco temp gauge. Will not work with an original AC Delco gauge. AC Delco temp senders are Not Available. You need to change the gauge to the one listed in the store. Gauge is 3/8 NPT for single station gauge.

Temp Sender (Dual -- 3/8) -- 37.24

Dual station temp sender (3/8)
Standard values -- Part #TRJ5897

Temp Sender (Dual) -- 55.50

Temperature sender (dual)
Standard value dual station sender -- This sender can be used for all F Boats International with *non-AC Delco* gauges. Will not work for any AC Delco gauge application.

For Trojan Datcon dual station temp gauges or replacement F-Boat temperature gauges. Will not work for Trojan VDO gauges. We test each sender before shipping.

Fuel Sender -- (Datcon and Standard Value Gauges)

Fuel Sender
For Datcon and Standard Value Gauges. Each sender is set to Trojan specifications. Price is per sender (sold singly). Price varies depending on the Trojan model.

CALL TO ORDER - 609-713-4602 - We need your Hull Number and which fuel tank in order to provide the correct sender for your F-boat or International.

ABS Control Panel -- 82.73

ABS Control Panel
** Only 1 available **

Bilge Pump Plate - #1 -- 29.02

Bilge Pump Plate
Horizontal layout

Bilge Pump Plate - #2 -- 28.23

Bilge Pump Plate
Vertical Layout

Dash Warning Label -- 23.39

Dash Warning Label

DC Power Supply Panel Face -- 64.17

DC Power Supply Panel Face
** Have 10 **

Page: 6

F-44 MY Instrument Panel (port side) -- 93.75

F-44 Motor Yacht Instrument Panel (port side) -- NEW -- Diesel application -- Only THREE Available

F32 Panel Sticker -- 67.50

F32 Panel Sticker (1979 - 1981)
Comes as a set (Port and Starboard) - You can not see in the picture but above each of the switch labels are in RED - Engine / Bilge Forward and Aft (Port & Starboard) - If there is a problem with the engine or if bilge pump turns on the light under label comes on and the words are visible in Red.
